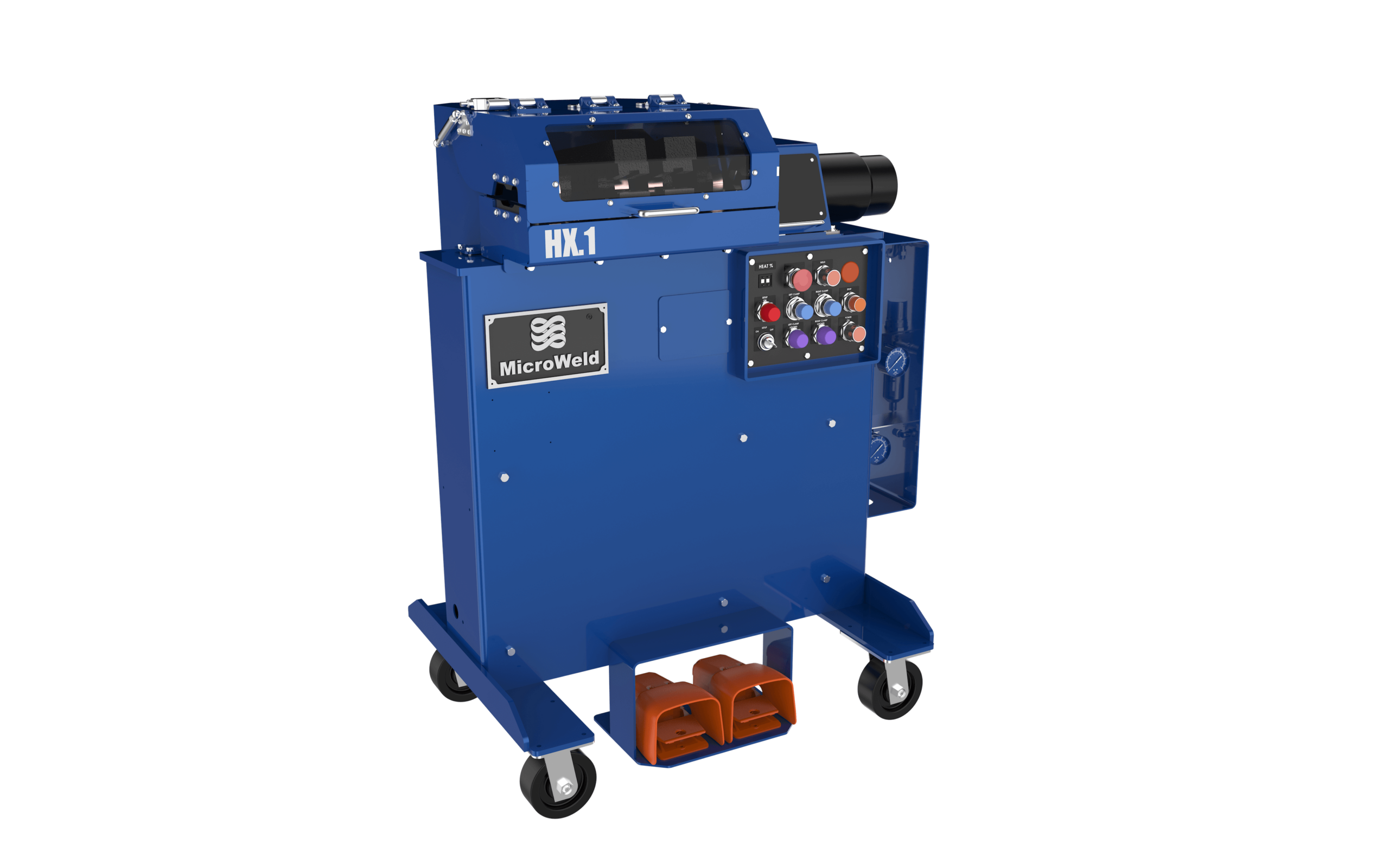

HX .1
Stainless, Steel
View Product

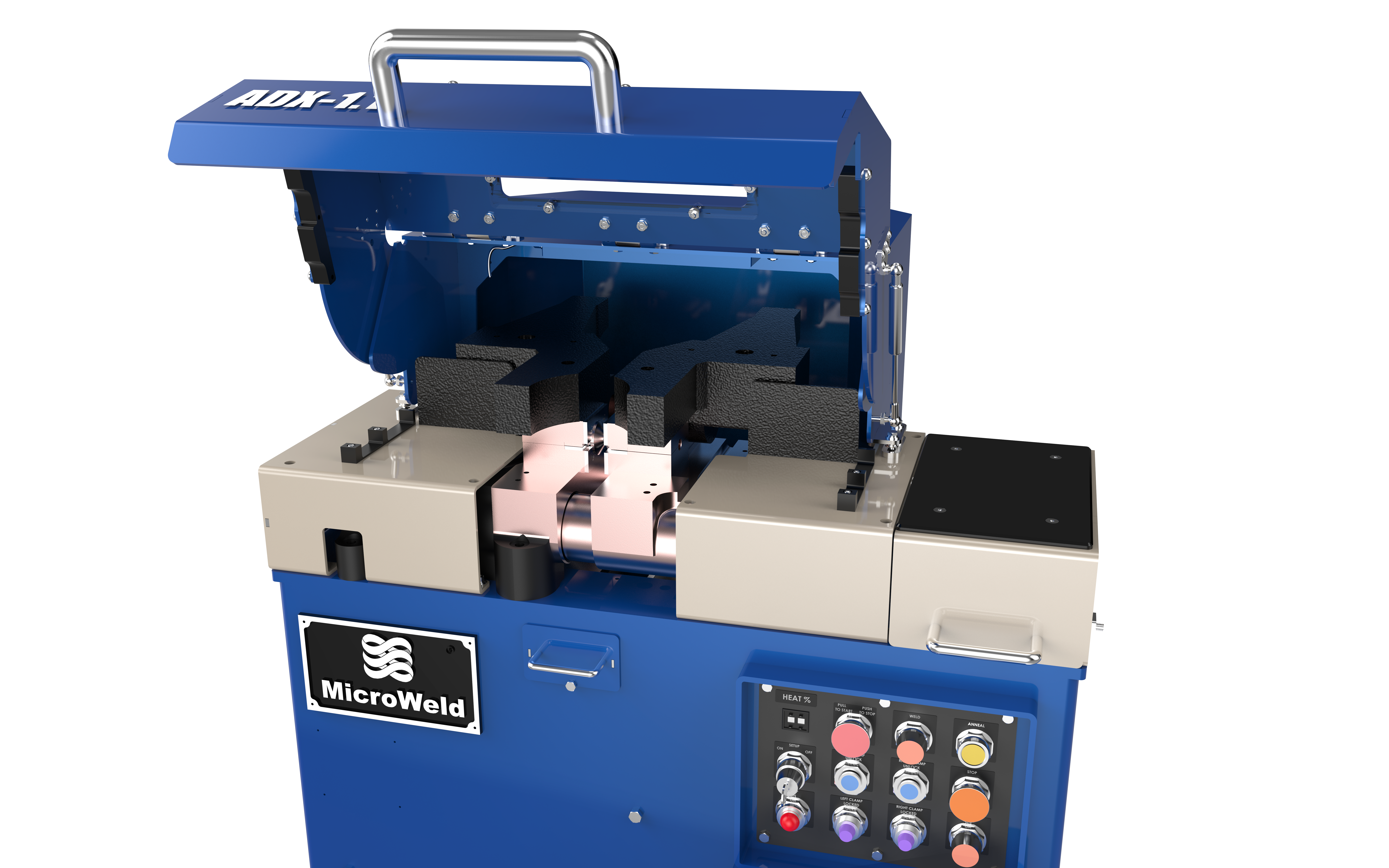

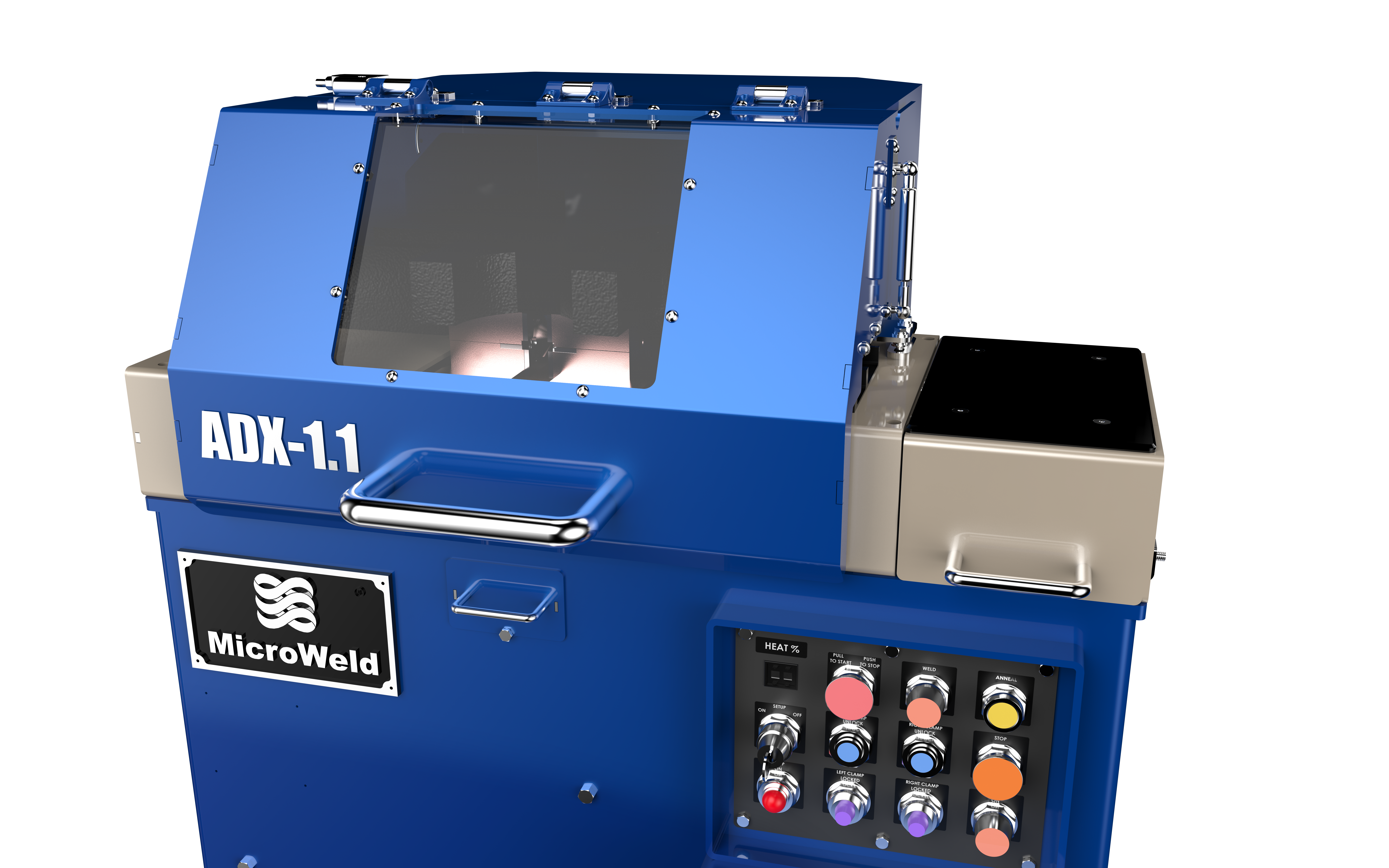

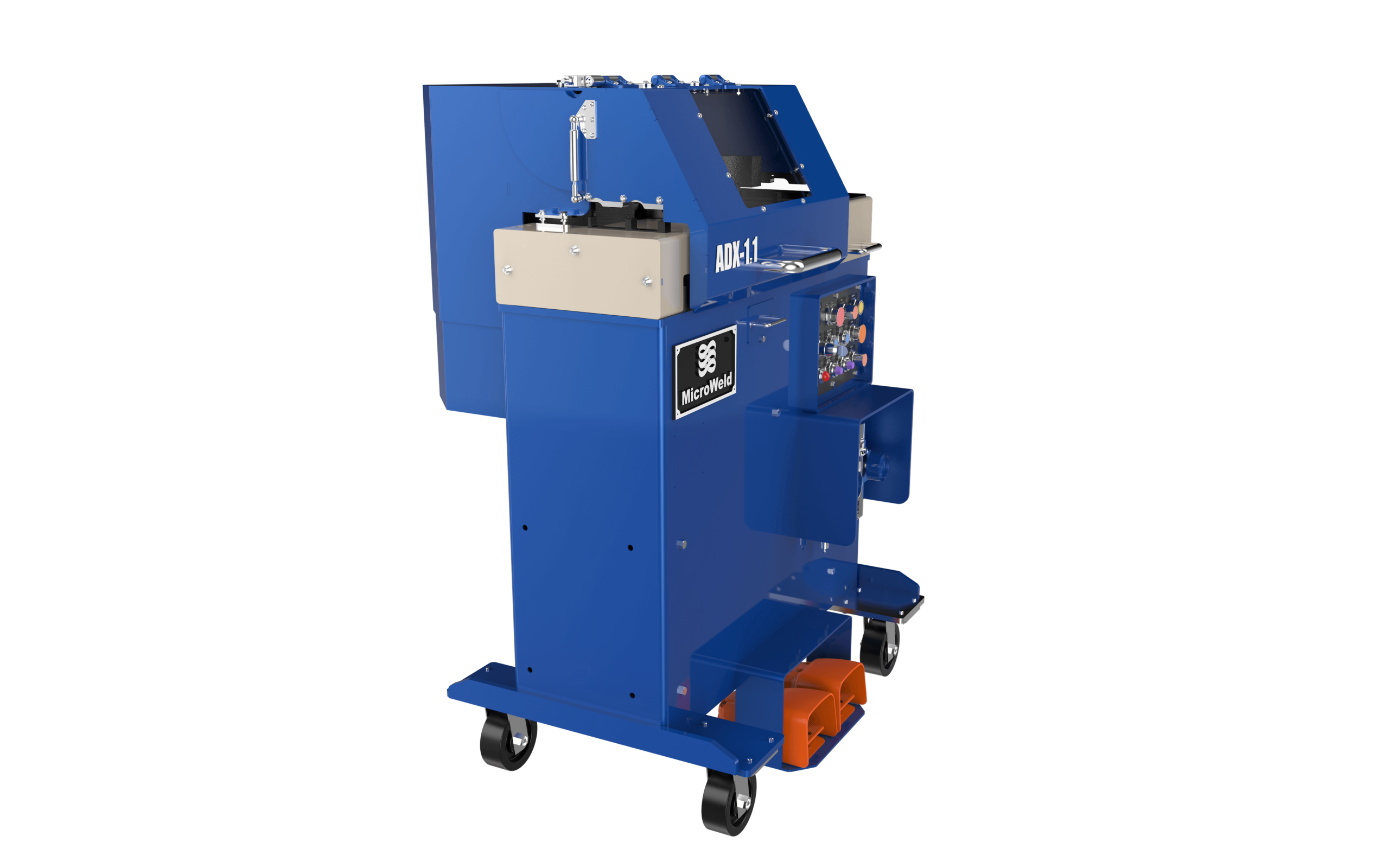

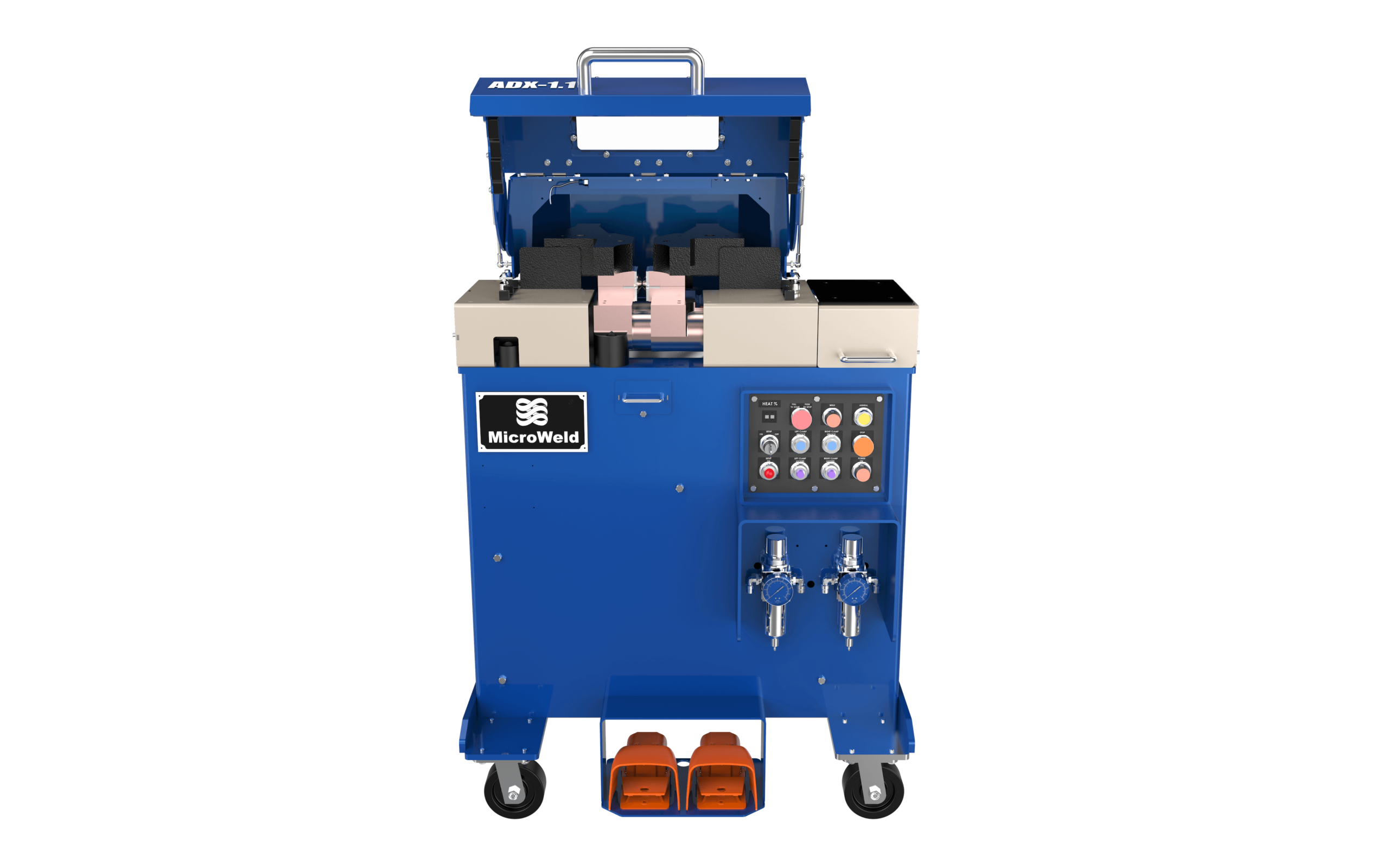

Butt Welder
ADX-1.1
Take your welding to the next level with the Micro Weld ADX-1.1 Butt Welder. Designed to deliver unbeatable reliability and consistency, this super heavy-duty welder is capable of welding steel wire or rod up to 1 inch (25.4mm) in diameter with unparalleled efficiency. Whether working in the toughest work environment or looking for the most cost-effective welding solution, the Micro Weld ADX-1.1 delivers. And, with its compact design, you’ll save valuable floor space without sacrificing power. Upgrade your welding game with the Micro Weld ADX-1.1 Butt Welder – the ultimate solution for seamless and efficient welding.
- 480 volts, 50 or 60 cycle, single phase
- Solid-state heat control
- Pneumatic upset
- Solenoid-controlled, pneumatic-actuated clamps
- Operator controlled anneal
- Heavy-duty truck with V-track wheels
Metal:
Stainless, Steel
Construction:
Solid
Solid Steel Welding Range:
.250 in (6,35 mm) - 1.00 in (25,40 mm)
Max Current Draw:
390/195/160
Single Phase Transformer:
Yes
Heat Selection Method:
99 STEPS SCR
Upset Method:
Air
Air Requirements:
100psi
Mounting Truck Type:
4 Wheels
Dimensions & Weight:
Welding Die Height: 43 in (109.22 cm)
Width Across the Front: 36 in (91.44 cm)
Depth to the Back: 30 in (76.2 cm)
Height: 54 in (137.16 cm)
Weight: 1100 lbs (498.85 kg)
Width Across the Front: 36 in (91.44 cm)
Depth to the Back: 30 in (76.2 cm)
Height: 54 in (137.16 cm)
Weight: 1100 lbs (498.85 kg)
