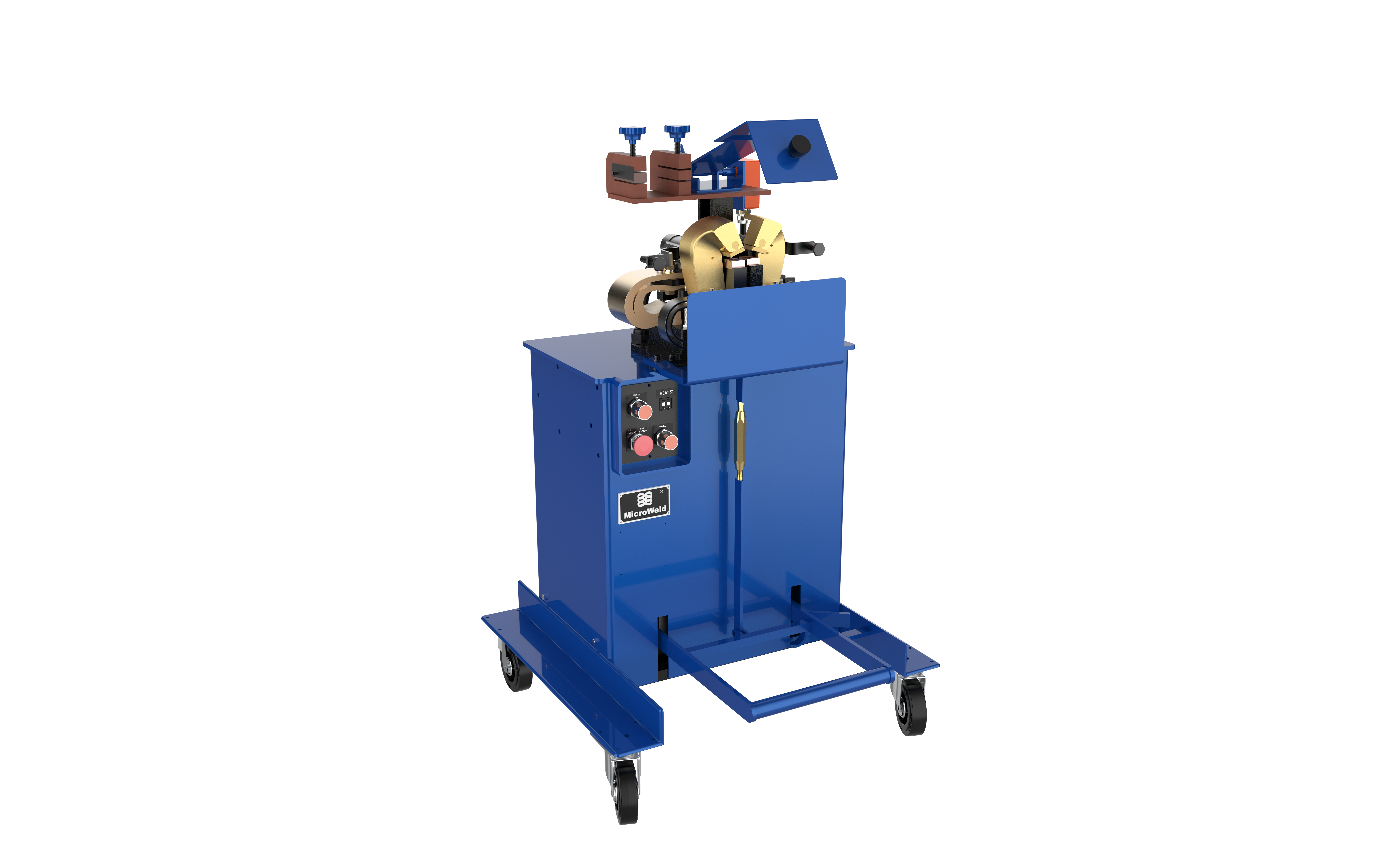

J5SF Steel Strip & Flat Stock Butt Welder
Our J Series Flat Stock Micro Weld Butt Welders operate with greater efficiency, endure longer, and deliver consistent, high-quality welds on steel strip and titanium flat stock. The J5SF is the mid model of the three-model range, welding strip from .010 in (0,25 mm) to 1.00 in (25,40 mm) on a heavier 440-lb chassis. Extra heavy-duty primary coils and secondary transformer components deliver the power wider strip demands, with solid-state 99-step SCR heat control for fine, repeatable heat. Flat-stock anneal, heavy-duty shear, and filing vise options, plus foot-actuated clamping and upset, keep prep through finish at one station.
Metal:
Steel Strip, Titanium
Construction:
Flat
Solid Steel Welding Range:
.010 in (0,25 mm) - 1.00 in (25,40 mm)
Max Current Draw:
234/117/95
Single Phase Transformer:
Yes
Heat Selection Method:
99 STEPS SCR
Upset Method:
Mechanical
Air Requirements:
n/a
Mounting Truck Type:
4 Wheels
Dimensions & Weight:
Welding Die Height: 41 in (104 cm)
Width Across the Front: 28 in (71 cm)
Depth to the Back: 28 in (71 cm)
Height: 44 in (113 cm)
Weight: 440 lbs (200 kg)
Width Across the Front: 28 in (71 cm)
Depth to the Back: 28 in (71 cm)
Height: 44 in (113 cm)
Weight: 440 lbs (200 kg)
- Standard Top Flat Stock Anneal
- Heavy Duty Flat Stock Shear
- Flat Stock Filing Vise
Butt Welder Upgrades to Improve Your Precision and Productivity
Upgrade your Micro Weld butt welders with world-class safety & technology accessories. You’ll get the same quality, rugged welders with the safety features you need, creating uniformity with every machine and consistency with every training.
- New Finger Safe Covers & Components
- 24V Control Circuit
- Interlock Switch on Rear Access Panel
- Solid-State Heat Control
Applications
Joining mid-width steel strip and flat stock ahead of forming, stamping, slitting, or coiling
Coil-to-coil joining of flat strip to keep continuous strip-processing lines fed
Band, blade, and strapping stock production where a clean flat butt weld is required
Titanium strip joining and other flat-stock work needing full-width, full-strength joints
Real-World Benefits
- Extra heavy-duty primary coils and secondary transformer components deliver the power and reliability needed for continuous flat-stock welding.
- Solid-state 99-step SCR heat control gives fine, repeatable heat selection across a wide strip-thickness range.
- Foot-actuated, dual-action clamping and upset keep both hands free for strip handling and produce a consistent, operator-independent upset.
- Selectable 240V, 480V, or 600V single-phase power drops into most shop services.
- Mobile 4-wheel truck plus flat-stock-specific anneal, heavy-duty flat-stock shear, and flat-stock filing vise handle prep, weld, and finish.
Comparison to Similar Models
The J5SF is the mid model of the flat-stock J Series, welding steel strip and titanium from .010 in to 1.00 in (0.25–25.40 mm). Like the rest of the “SF” line it is a flat-stock machine — flat construction, flat-stock dies and tooling — distinct from the round-wire JC and JS lines.
Where the J4SF is a 180-lb machine, the J5SF is a larger 440-lb machine with a bigger transformer (234/117/95 max draw) for wider, heavier strip. Choose it when your strip exceeds the J4SF’s .750 in width; step up to the J6SF (.020–1.25 in) for the widest stock. For round wire or rod, choose a JC or JS model.
Best For
Manufacturers joining mid-width steel strip and flat stock (up to 1.00 in) — blade, band, and strapping producers, or titanium strip work — that need more flat-stock capacity than the J4SF.
