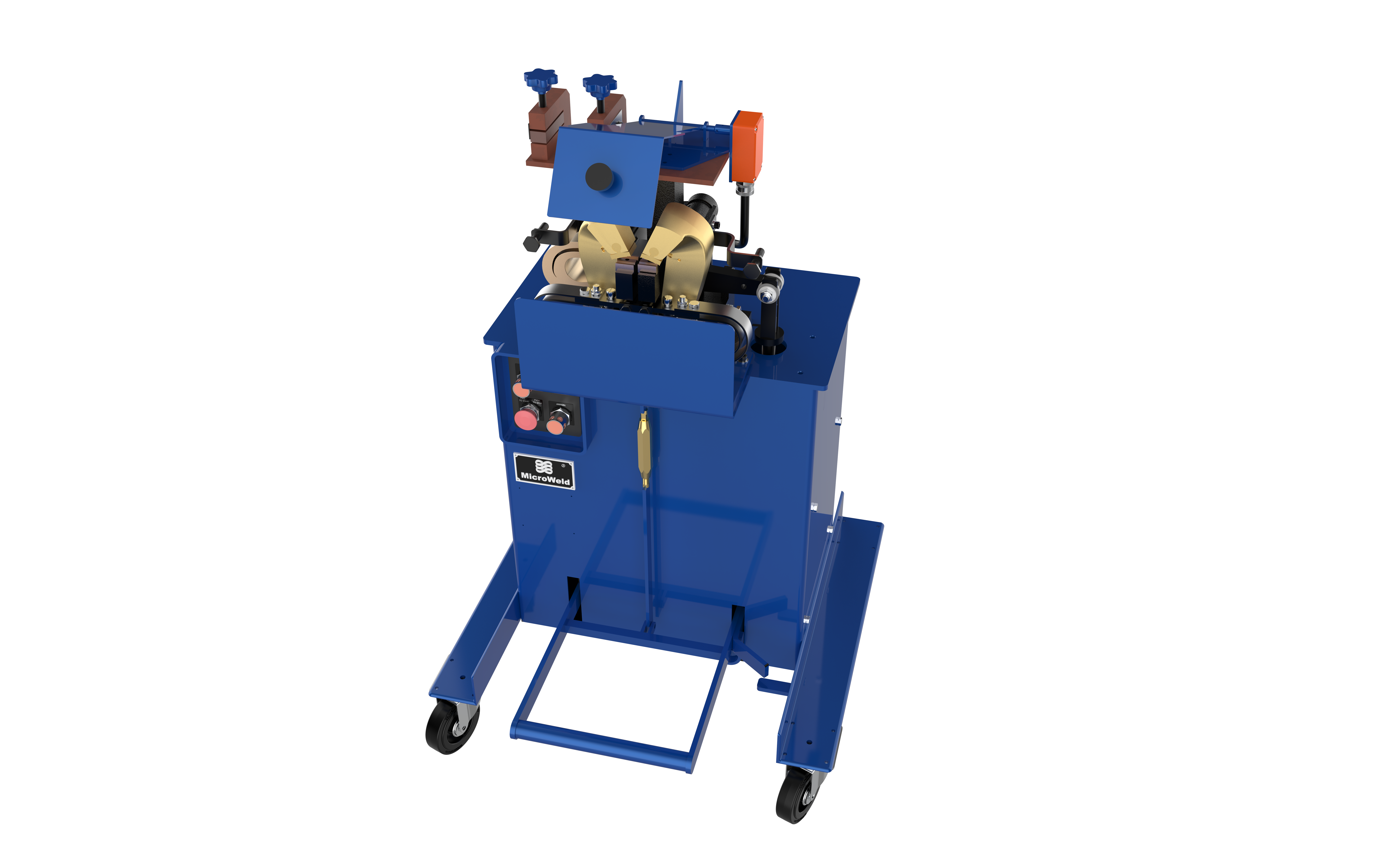

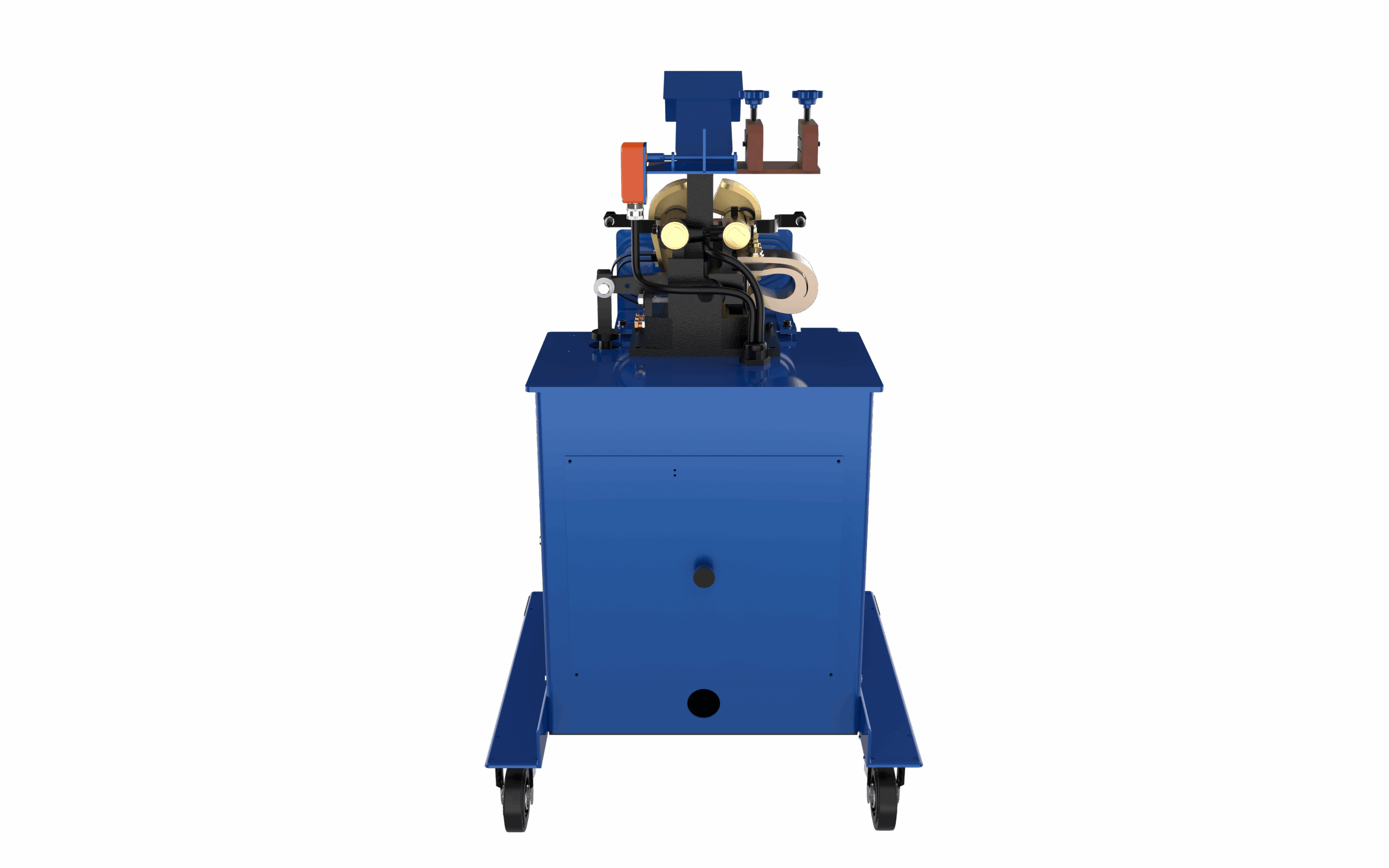

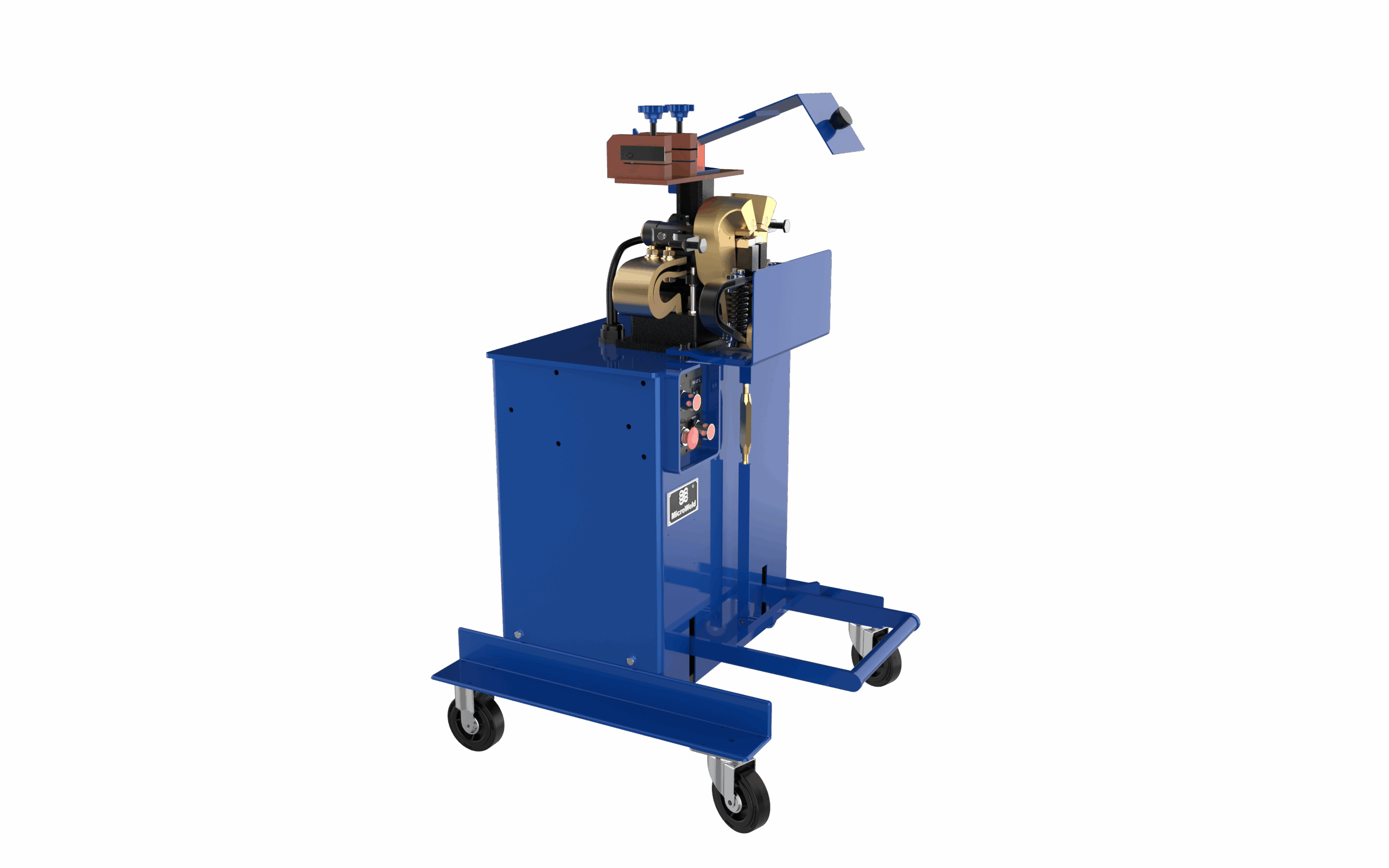

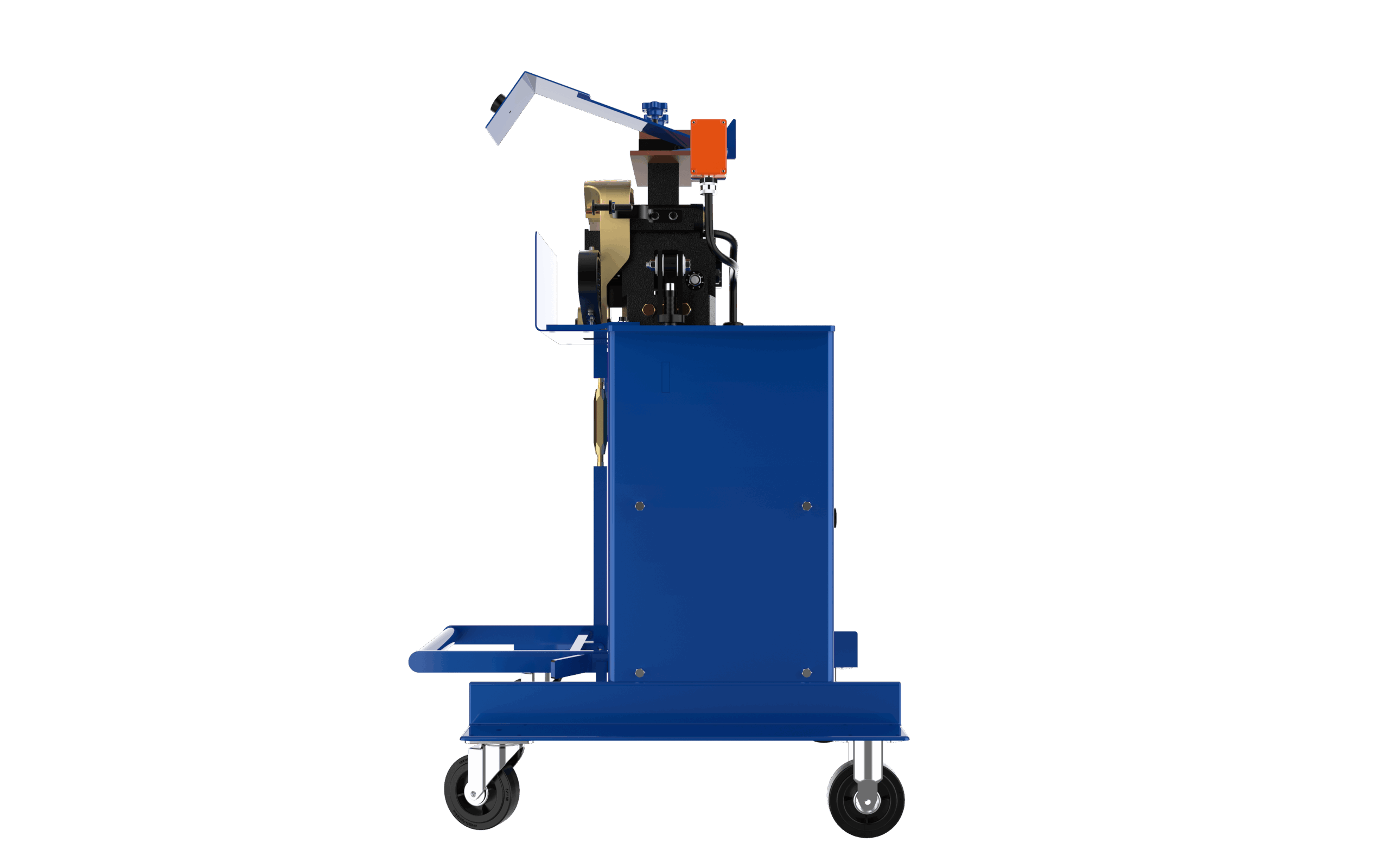

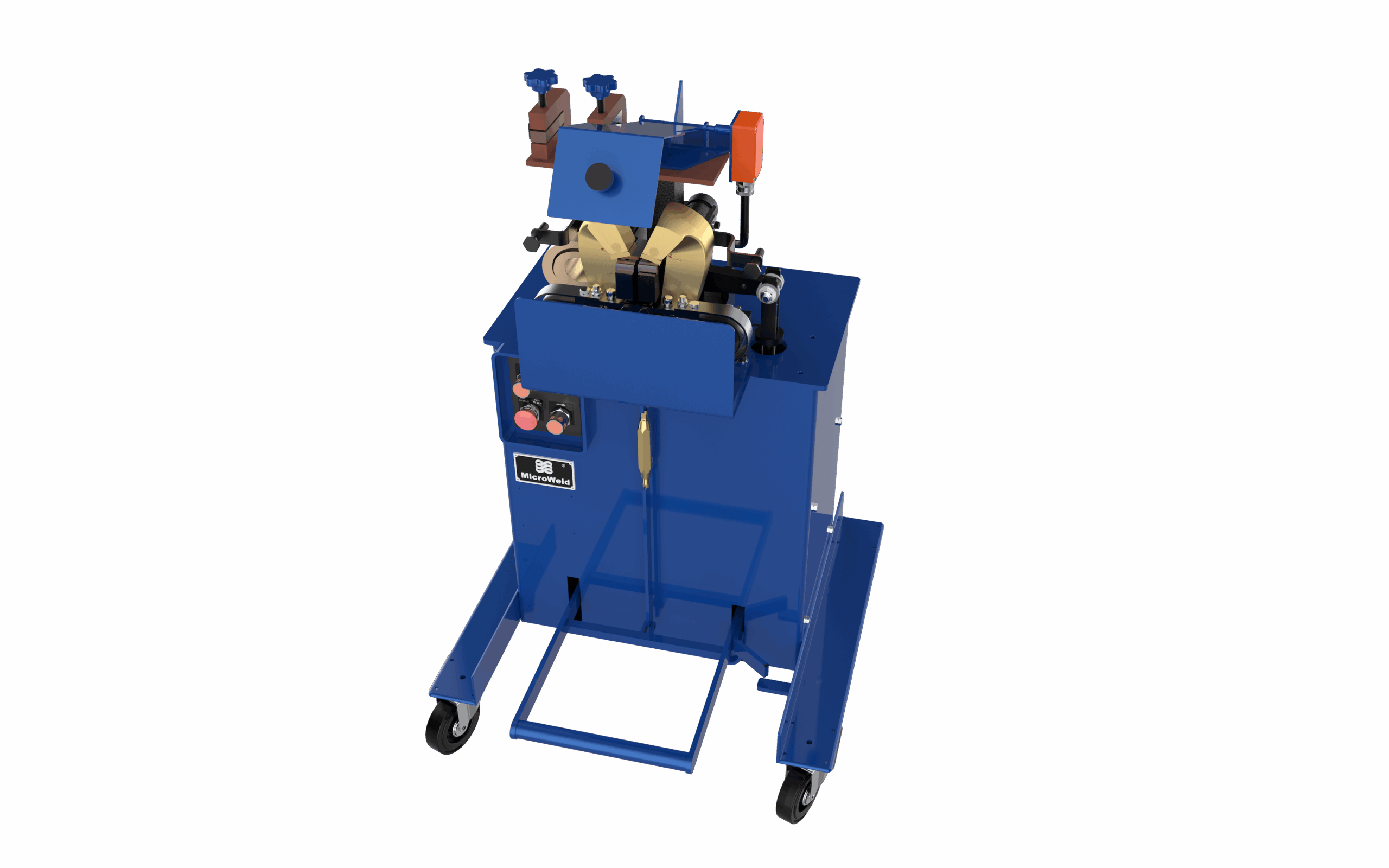

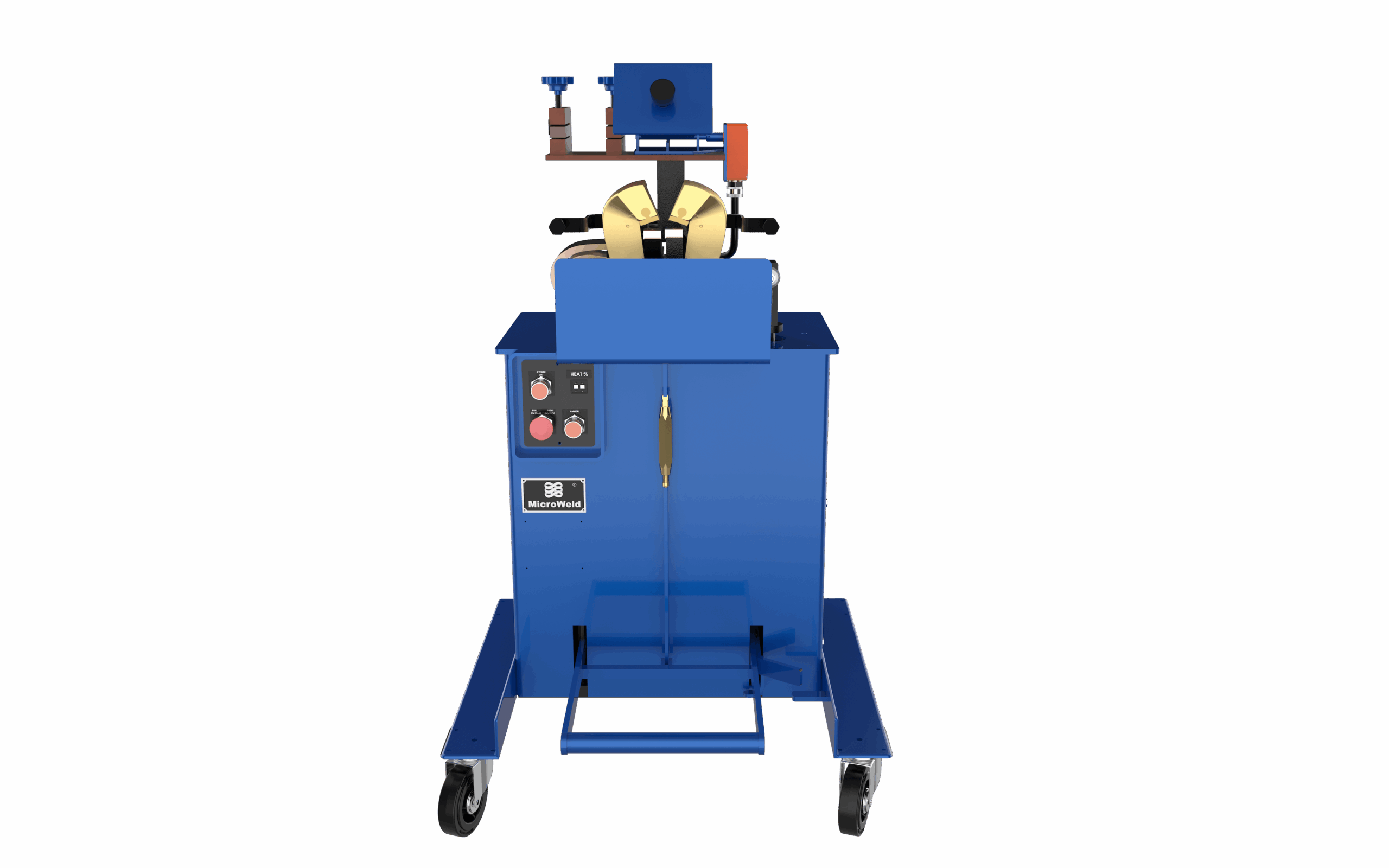

J6S Heavy Steel & Stainless Rod Welder
Transform your welding operations with the JS Series Micro Weld Butt Welders — engineered for durability, performance, and consistent, high-quality welds on solid steel, stainless, and titanium wire and rod. The J6S handles the heavy end of the range, welding solid steel rod from .187 in (4,74 mm) to .375 in (9,52 mm) on a rugged 460-lb chassis. An extra heavy-duty transformer sustains continuous processing of heavy rod, and solid-state 99-step SCR heat control provides the fine, repeatable heat stainless and titanium require. Foot-actuated dual-action clamping and upset deliver consistent results, on 240V, 480V, or 600V single-phase power.
Metal:
Stainless Steel, Steel, Titanium
Construction:
Solid
Solid Steel Welding Range:
.187 in (4,74 mm) - .375 in (9,52 mm)
Max Current Draw:
139/69/57
Single Phase Transformer:
Yes
Heat Selection Method:
99 STEPS SCR
Upset Method:
Mechanical
Air Requirements:
n/a
Mounting Truck Type:
4 Wheels
Dimensions & Weight:
Welding Die Height: 41 in (104 cm)
Width Across the Front: 28 in (71 cm)
Depth to the Back: 28 in (71 cm)
Height: 44 in (113 cm)
Weight: 460 lbs (208 kg)
Width Across the Front: 28 in (71 cm)
Depth to the Back: 28 in (71 cm)
Height: 44 in (113 cm)
Weight: 460 lbs (208 kg)
- Standard Vise
- Complete Front Anneal
- #1 Shear
- 1/2 HP Vertical Grinder
- Dial Indicator for Front Anneal
Butt Welder Upgrades to Improve Your Precision and Productivity
Upgrade your Micro Weld butt welders with world-class safety & technology accessories. You’ll get the same quality, rugged welders with the safety features you need, creating uniformity with every machine and consistency with every training.
- New Finger Safe Covers & Components
- 24V Control Circuit
- Interlock Switch on Rear Access Panel
- Solid-State Heat Control
Applications
Joining heavy solid steel, stainless, or titanium wire and rod ahead of drawing, forming, or coiling
Continuous-line splicing in spring, fastener, wire-form, fencing, and reinforcing-mesh production
Rejoining stock on payoff and take-up lines to keep a running line fed
Stainless and titanium wire and rod joining where a clean, full-strength butt weld is required
Real-World Benefits
- Extra heavy-duty transformer supports continuous processing of steel wire and rod without duty-cycle stalls.
- Solid-state 99-step SCR heat control delivers fine, repeatable heat selection — important for consistent results on stainless and titanium.
- Foot-actuated, dual-action clamping and upset keep both hands free for wire handling and give a consistent, operator-independent upset.
- Selectable 240V, 480V, or 600V single-phase power makes the machine easy to drop into most shop services.
- Mobile 4-wheel truck lets the station move to the line; anneal, vise, shear, and grinder options handle prep, weld, and finish.
Comparison to Similar Models
The J6S is the largest-capacity ferrous JS model offered here, welding solid steel, stainless, and titanium from .187 in to .375 in (4.74–9.52 mm) — heavy rod approaching the top of the J Series’ .5 in range. It welds the same metals as the rest of the “S” line on a heavy 460-lb chassis.
Choose the J6S when your steel or stainless rod exceeds the J5S’s .250 in ceiling. Above it in the full JS Series sits the J8S for the very largest sections. For non-ferrous wire choose the JC line; for flat strip, the JSF line.
Best For
Shops running heavy solid steel, stainless, or titanium rod (.187–.375 in) that need near-top-of-range JS-Series capacity with a heavy-duty transformer and mobile truck.
