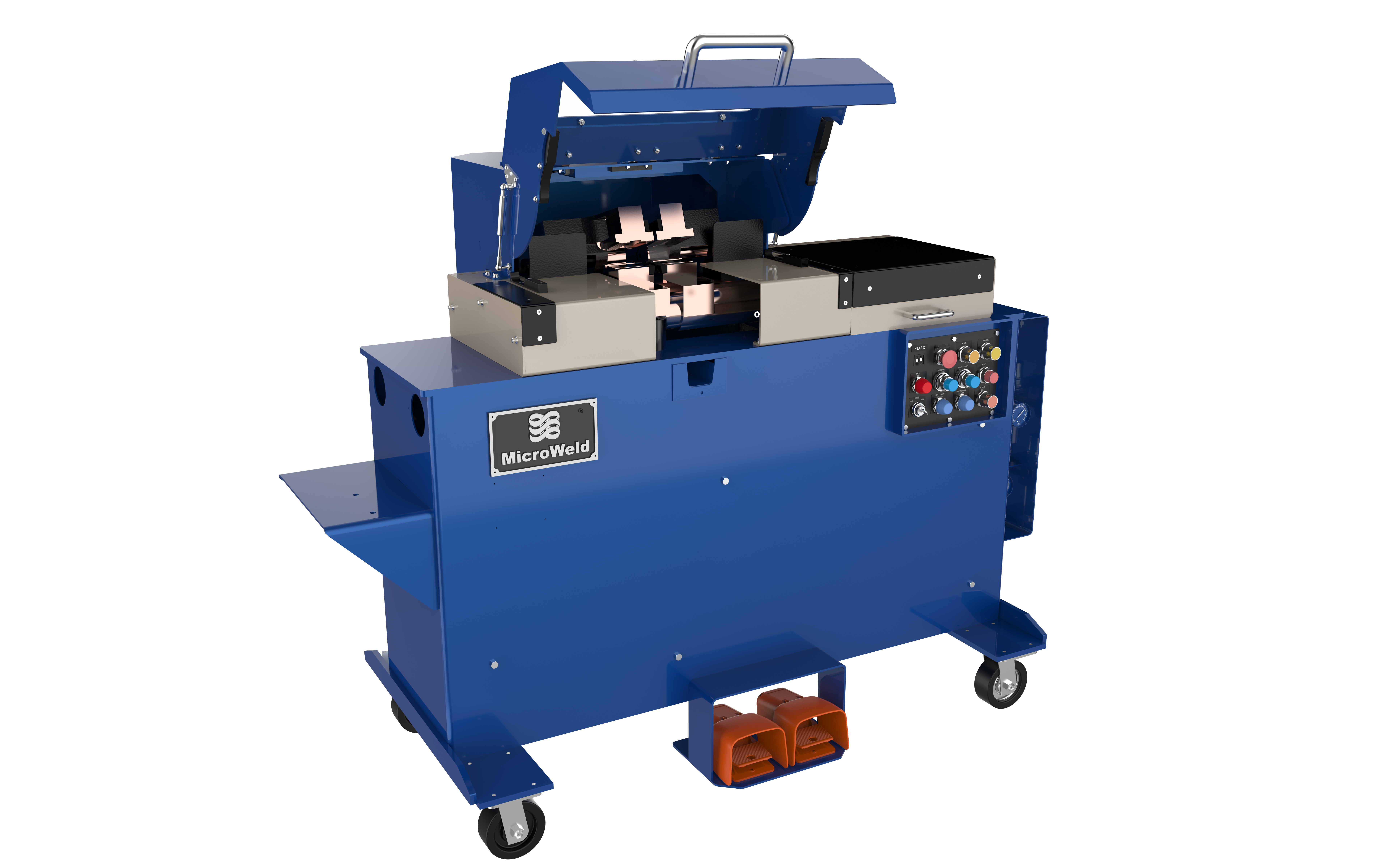

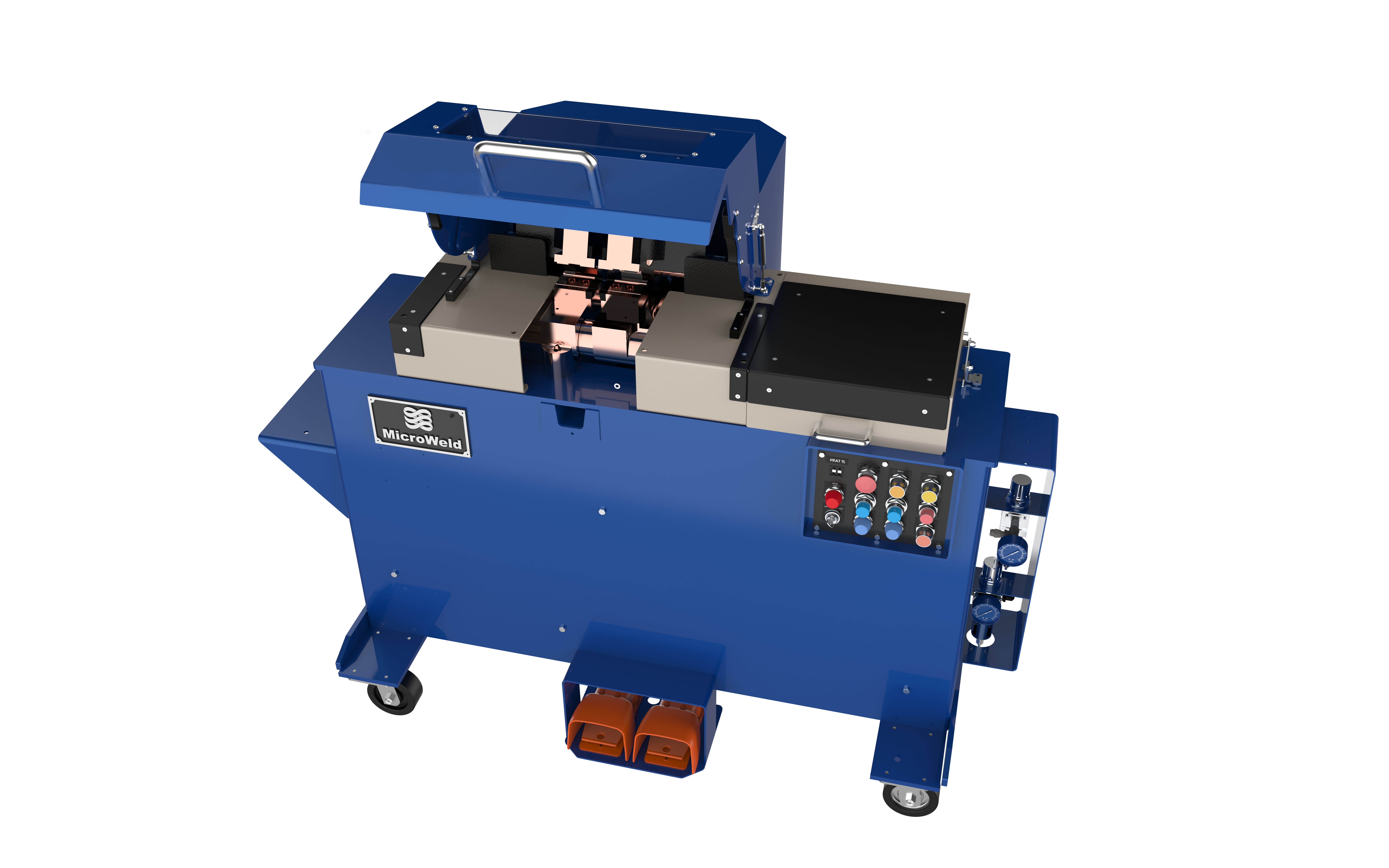

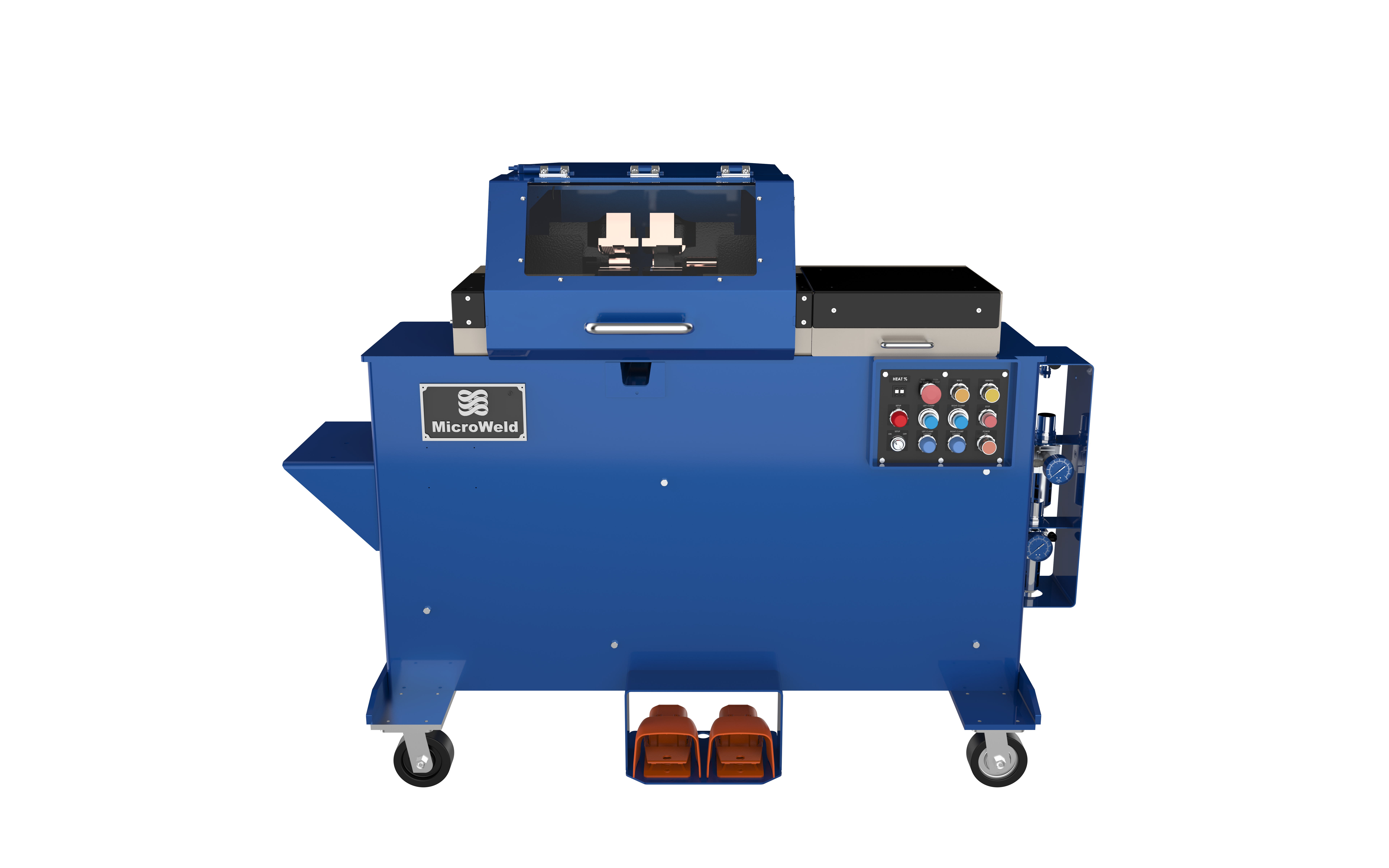

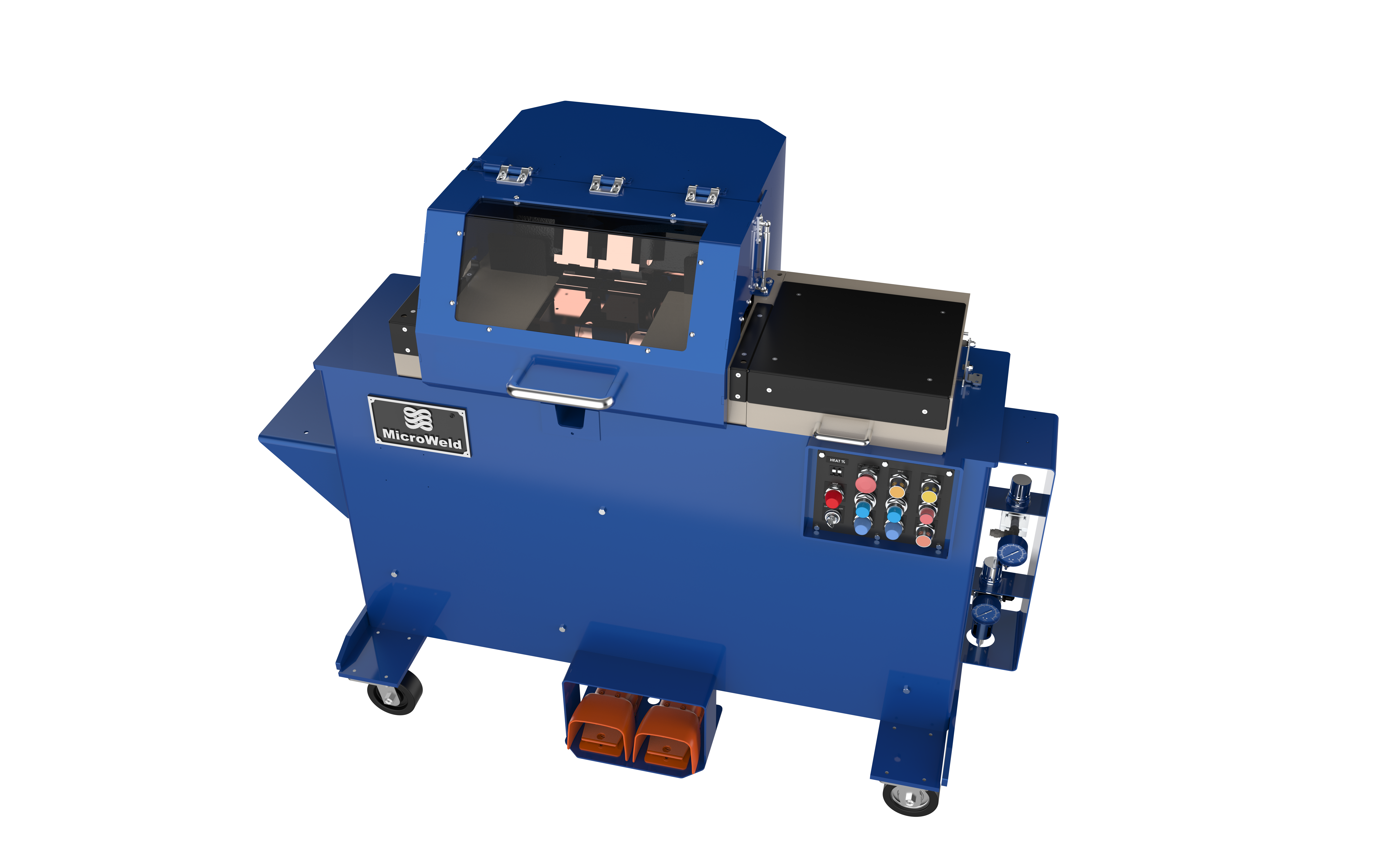

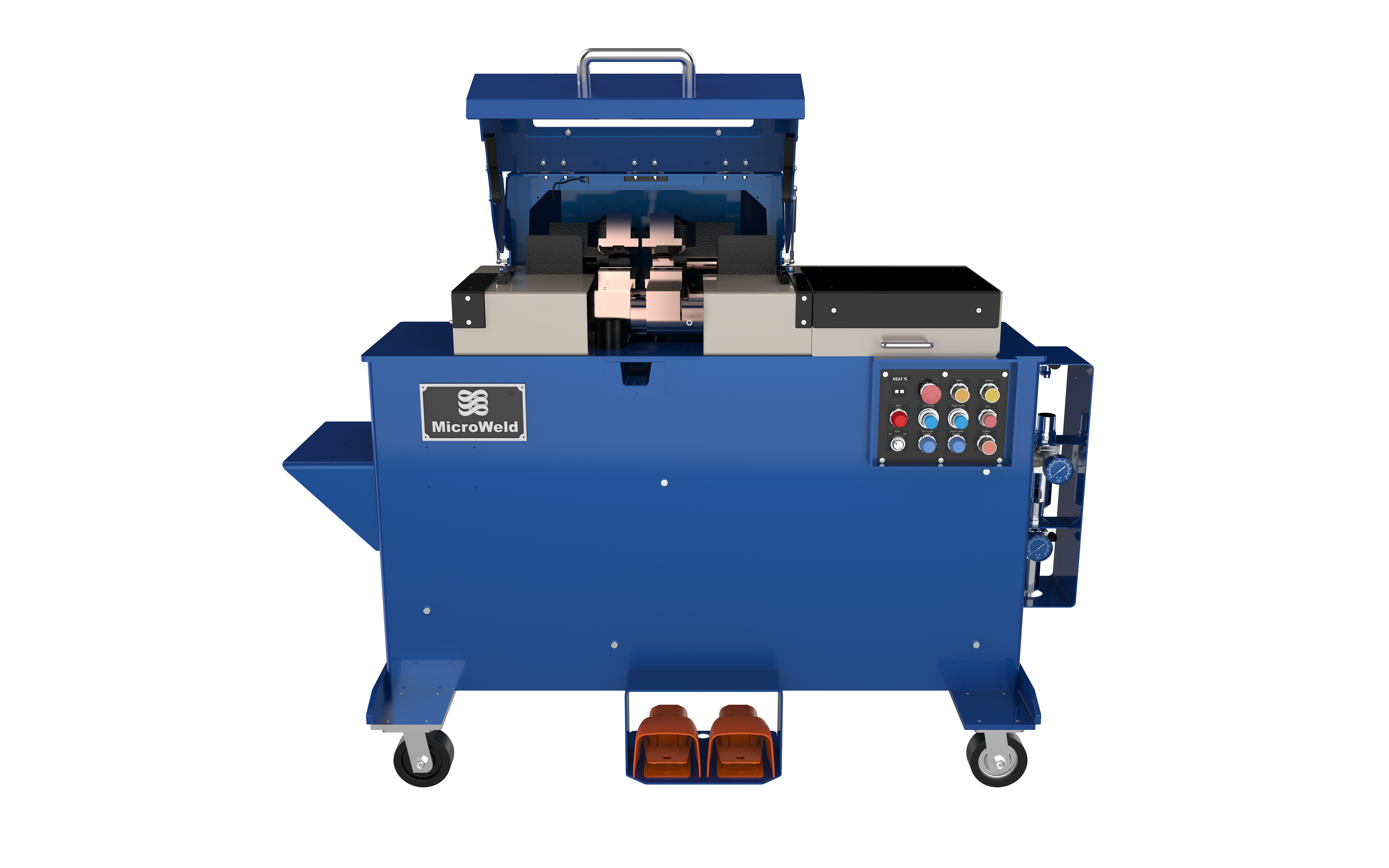

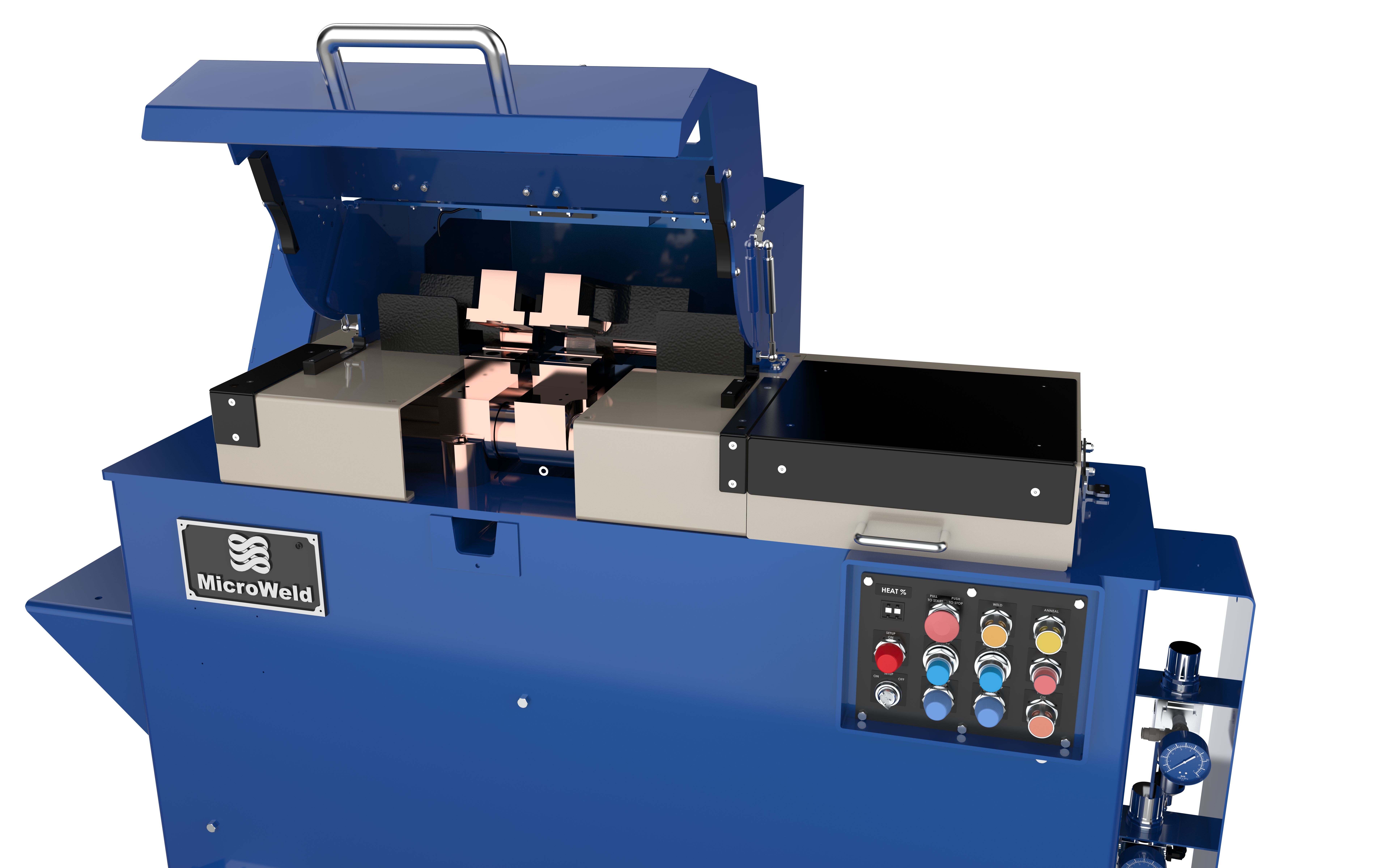

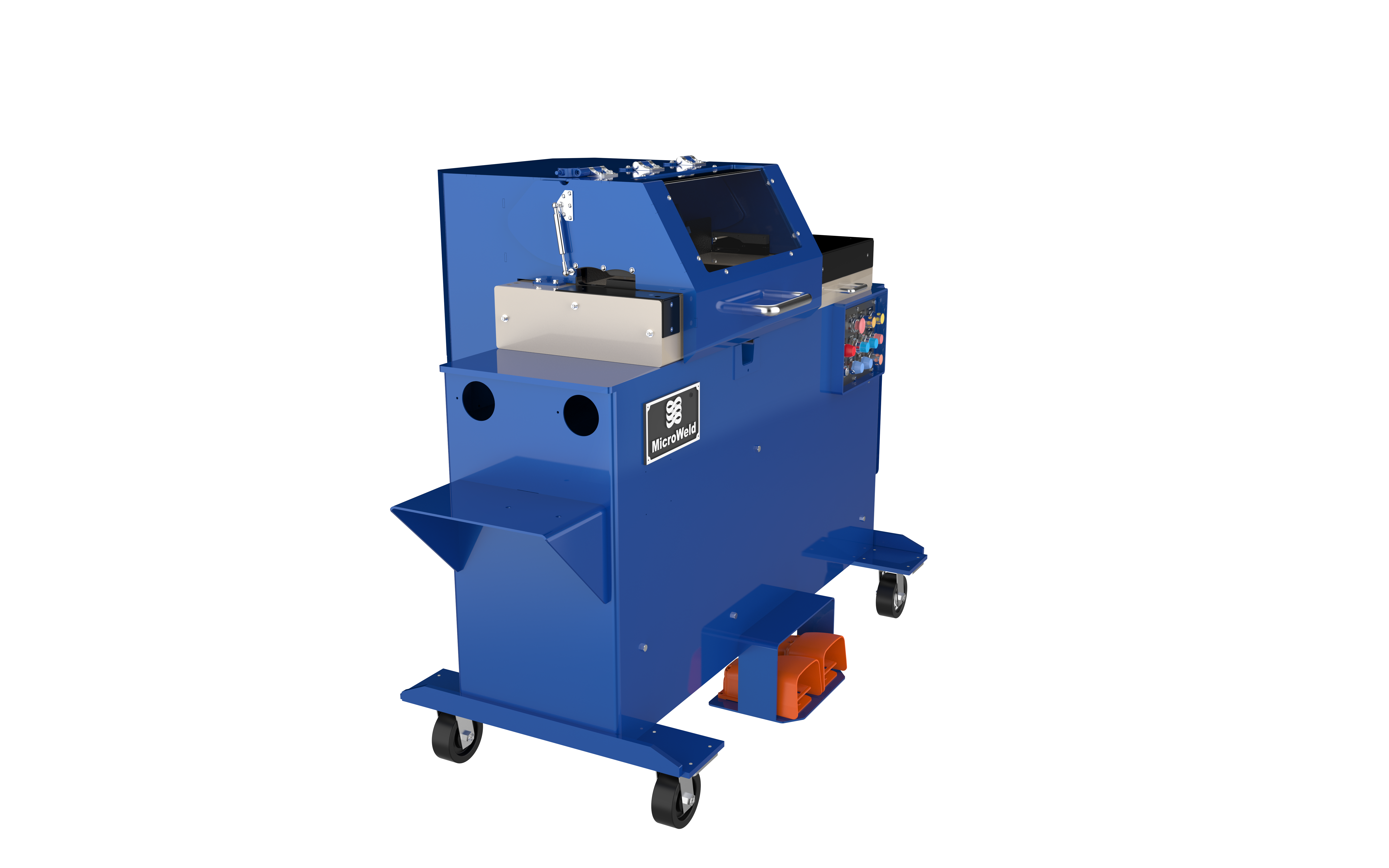

MD-5 Steel Rod Butt Welder

The MD-5 advances Micro Weld’s MD series into mid-range steel rod production, welding solid steel, stainless, and titanium rod from .500 to 1.125 in (12.70–28.57 mm). A motor-driven cam upset mechanism applies the heavy, repeatable pressure these larger cross-sections demand, while the water-cooled headpiece and foot-controlled pneumatic clamping keep the operation precise through sustained runs. With more transformer capacity than the MD-4 — and an optional vertical layout available on request — the MD-5 suits producers scaling up to heavier rod without compromising weld quality

  • Standard Electrical Equipment:
    • Weld Transformer Wound for 480 Or 600 Volt, 60 Cycle, Single Phase A/C.
    • Equipped With A 6 Pt Heat Selection Switch
    • 120 Volt Control Circuits
    • Safety Flashguard Interlock Switch
    • 1 1/2 Hp Ac Motor (SCR) Speed Control
    • Push Button Operation
    • Heavy Duty Stepdown Transformer
  • Standard Mechanical Equipment:
    • Complete With Pneumatically Operated Foot Controlled Clamping Mechanism
    • Motor-Driven Cam Upset Mechanism
    • Heavy Duty Straight
    • Slide Movable Headpiece
    • Flashguard
    • Watercooled Headpiece
    • Arm Type Anneal Mounted On A Heavy Duty Four Wheel Truck With Caster Wheels
Metal:
Stainless Steel, Steel, Titanium
Construction:
Solid
Solid Steel Welding Range:
.500 in (12,70 mm) - 1.125 in (28,57 mm)
Max Current Draw:
866/433/348
Single Phase Transformer:
Yes
Heat Selection Method:
99 STEPS SCR
Upset Method:
Motorized Cam
Air Requirements:
n/a
Mounting Truck Type:
4 Wheels
Dimensions & Weight:
Welding Die Height: 43 in (109.22 cm)
Width Across the Front: 60 in (152 cm)
Depth to the Back: 37 in (94 cm)
Height: 50 in (127 cm)
Weight: 2325 lbs (1054.60 kg)
  • Heavy Duty Vise
  • CAL Type Anneal

Butt Welder Upgrades to Improve Your Precision and Productivity

Upgrade your Micro Weld butt welders with world-class safety & technology accessories. You’ll get the same quality, rugged welders with the safety features you need, creating uniformity with every machine and consistency with every training.

  • New Finger Safe Covers & Components
  • 24V Control Circuit
  • Interlock Switch on Rear Access Panel
  • Solid-State Heat Control

Applications

Re-bar and reinforcing mesh in mid-to-heavy gauges

Large fasteners, anchors, and industrial rod

Heavy springs and structural wire forms

Agricultural and fencing rod stock

Steel rod feedstock for forming and drawing lines

Real-World Benefits

  • Consistent large-rod welds: Cam-driven upset maintains repeatable pressure as diameters increase, protecting joint strength.
  • Layout flexibility: An optional vertical configuration adapts the machine to tight floor space or specific line flow.
  • High-volume ready: Water cooling supports extended duty cycles without heat build-up.
  • Hands-free positioning: Foot-controlled clamping keeps material steady and the operator’s hands free.
  • Stable heat delivery: The heavy-duty transformer holds welding heat steady across long production runs.

Comparison to Similar Models

The MD-5 sits between the MD-4 (.250–.750 in) and the MD-6 (.750–1.500 in), overlapping the MD-4 at .500 in and the MD-6 through the upper part of its range. If most of your work falls below .750 in, the MD-4 may be sufficient; for rod consistently above 1.125 in, move up to the MD-6. The optional vertical layout is a distinguishing feature of the MD-5, giving it flexibility the other MD models don’t offer as standard.

  • Producers welding solid steel rod in the .500–1.125 in range
  • Shops that need a vertical-layout option for space or workflow
  • Mid-to-heavy re-bar, fastener, and spring production
